SERIES 100

FEATURED SERIES

Series 100 — Tempest

FIXED · THERMALLY BROKEN · CW-PG60

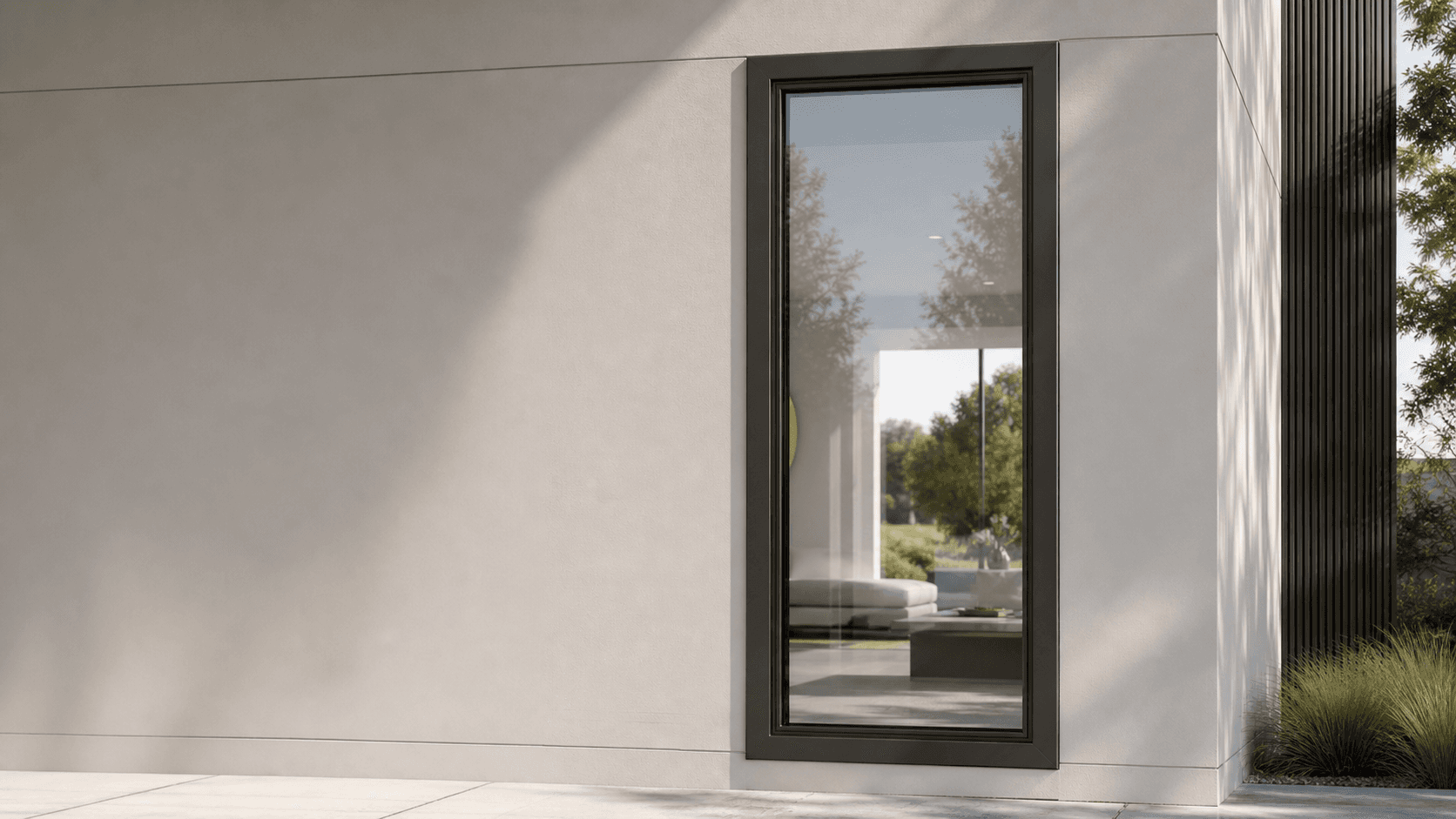

Series 100 Tempest fixed window installed in a modern stucco facade
FIXED UNIT — IN SITU

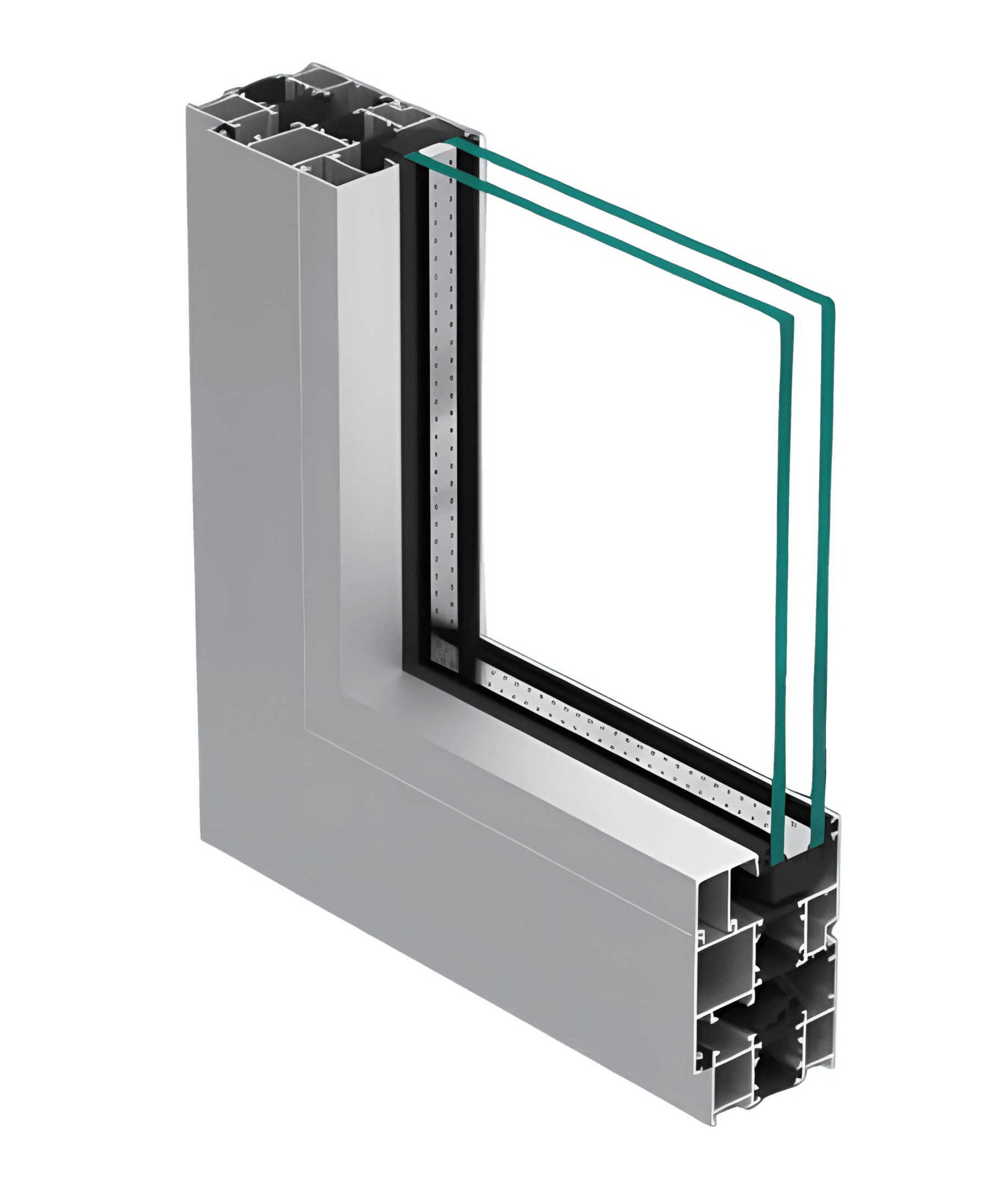

Cutaway of the 65 mm thermally broken aluminum corner profile with double glazing
65 MM PROFILE — CORNER CUTAWAY

PERFORMANCE — FIXED WINDOW

Florida Approval
FL47915 · non-HVHZ
NAFS Rating
CW-PG60 · A440-17
Design Pressure
+65 / −65 PSF
Structural Test
±90.23 PSF
Max Approved Size
48″ × 108″
U-Factor
0.16 · simulated
Air · Water
0.01 CFM/ft² · 12.11 PSF
Frame
Thermally broken aluminum
Glazing
1 7⁄16″ IGU · ¼″ tempered ext.

QAI 240527008SHF-001 · U-FACTOR PER SIMULATION, NOT NFRC LABEL

ALSO IN SERIES 100

  • Fixed

    FL47915 · Approved

  • Casement

    Approval pending

  • Single Hung

    In development

  • Tilt & Turn

    Configuration dependent

  • Awning

    Configuration dependent

  • Swing Door

    Configuration dependent

SYSTEM ANATOMY

Every part, accounted for

SECTION 1/D2 — JAMB · NTS

CONCRETE / BLOCK — BY OTHERS1/4″ MAX.D.L.O.FRAME WIDTH9/16″EXTERIORINTERIOR123456810111213G
TAP A CALLOUT TO INSPECT

TECHNICAL DRAWINGS

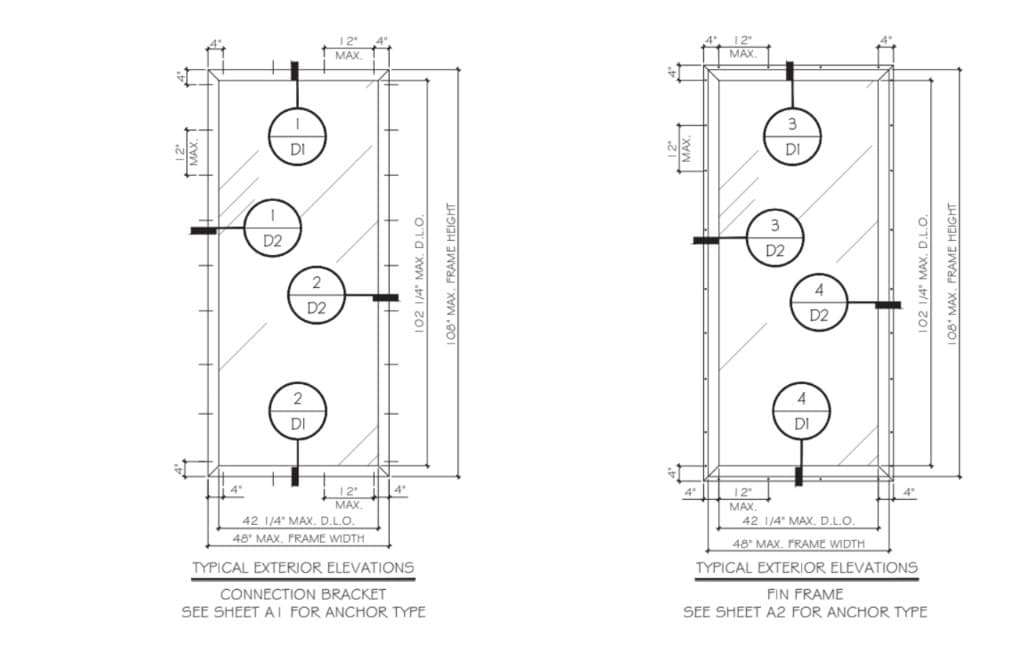

Typical exterior elevations for connection bracket and fin frame configurations
TYPICAL ELEVATIONS — BRACKET & FIN FRAMESHT E1

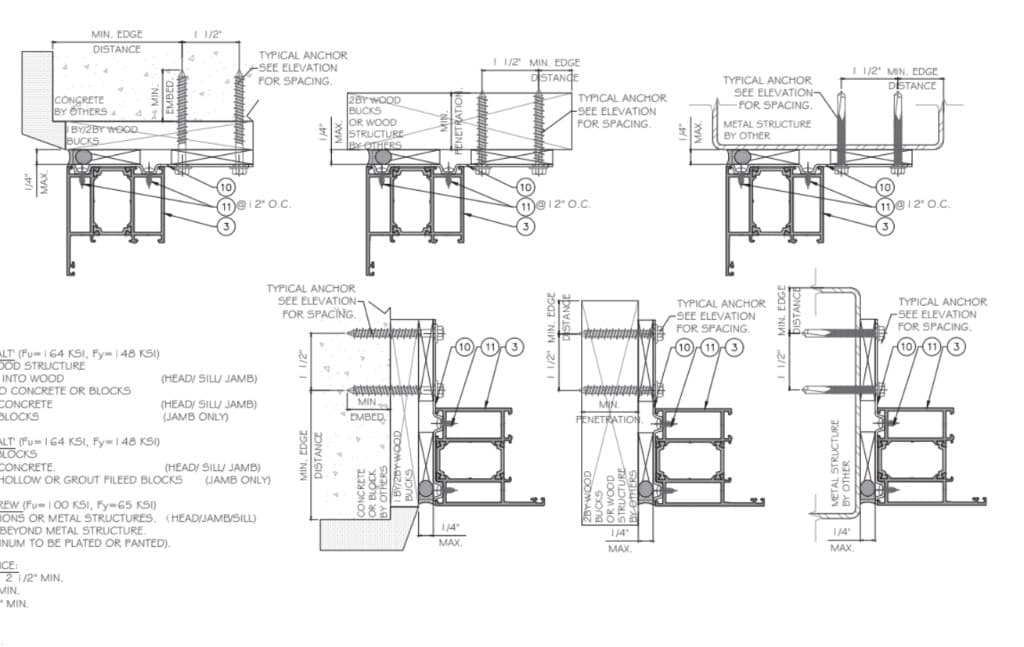

Horizontal and vertical section details through frame width and height
HORIZONTAL & VERTICAL SECTIONSSHT D2

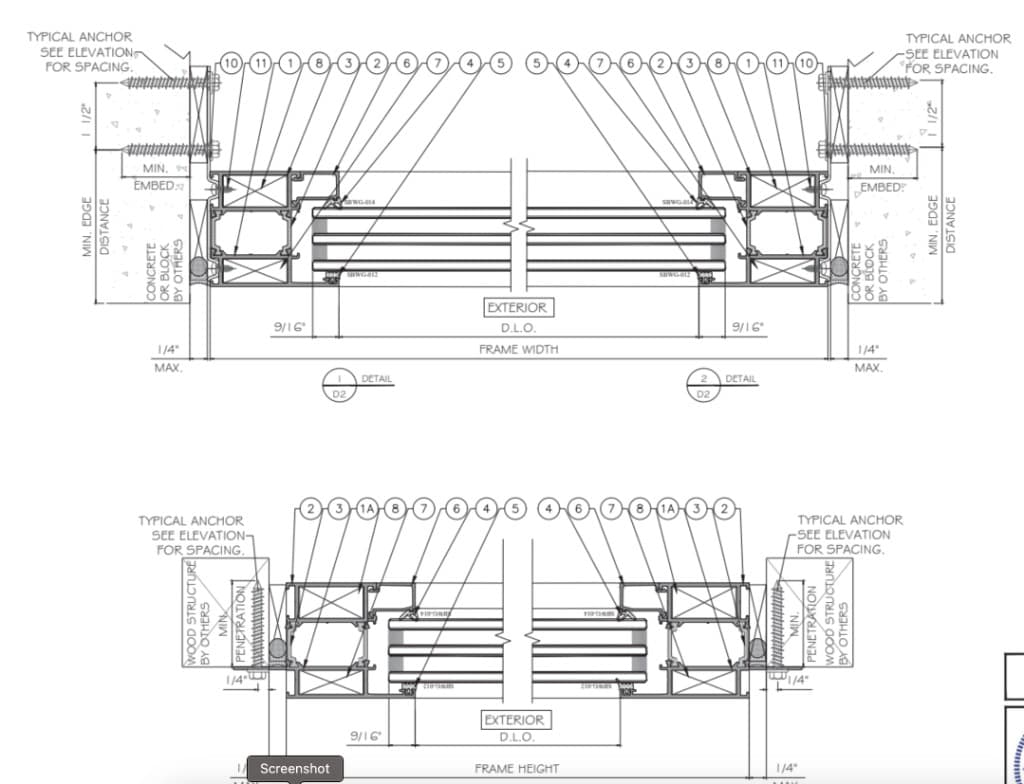

Anchor details at head, sill, and jamb into concrete, wood, and metal structure
ANCHOR DETAILS — HEAD · SILL · JAMBSHT A1–A2

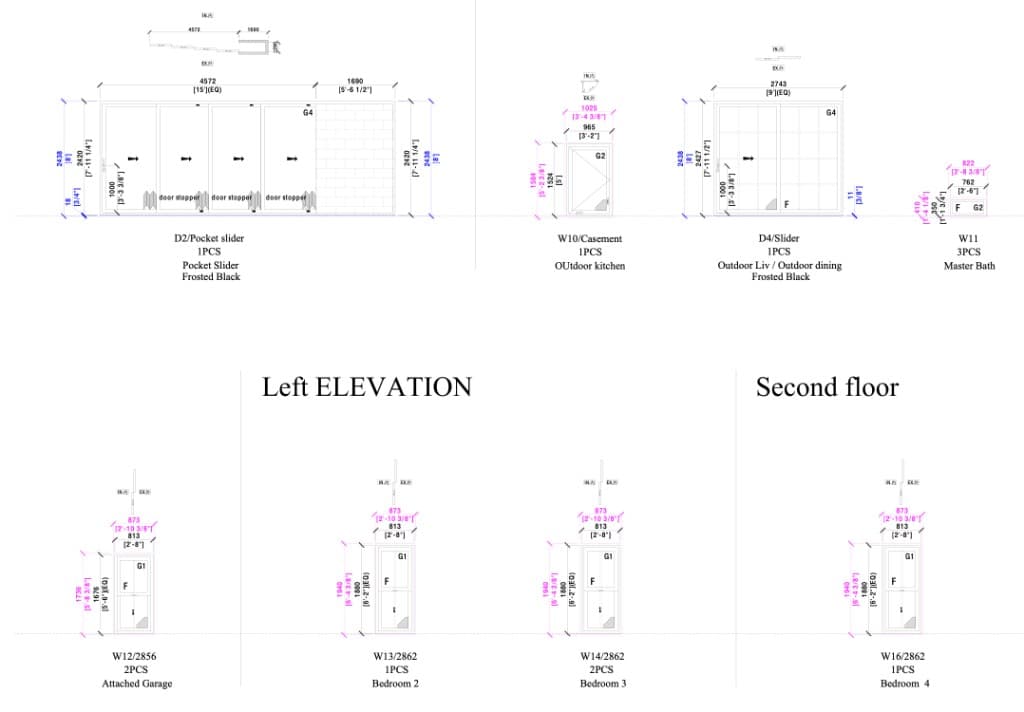

Application elevation schedule showing fixed, casement, and slider configurations
APPLICATION SCHEDULE — ELEVATIONSPROJECT SET
